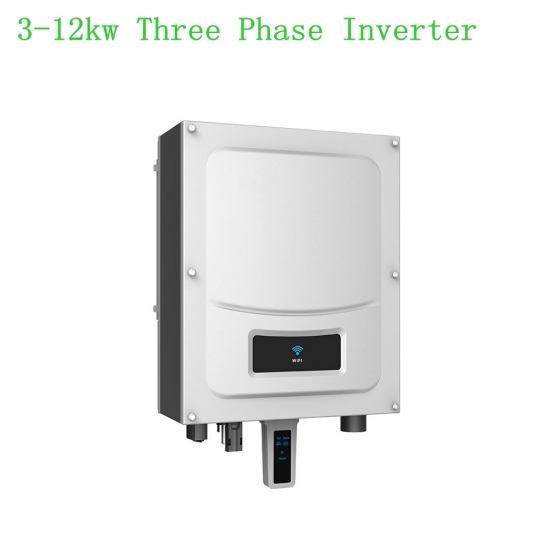

SOFAR PV Inverter 5kw 6kw 8kw 10kw 12kw Home Solar Energy Inverter 380V 400V On Grid

Grid tie (utility tie) PV systems consist of solar panels and an on grid inverter, without batteries.

The solar panel provides a special inverter that directly converts the DC voltage of the solar panel into an AC power source matching the power grid.

Extra power can sale to local city grid to reduce your home electricity fee.

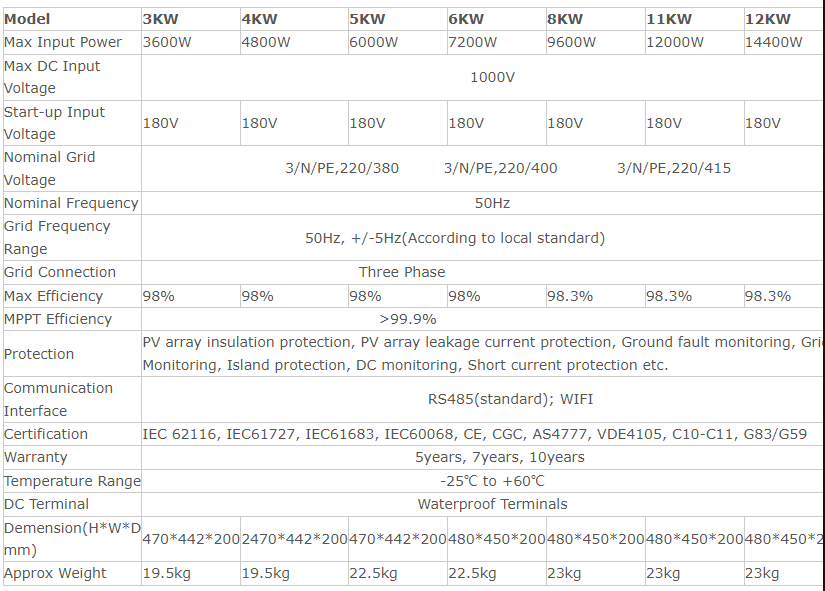

On-grid inverter specifications include single-phase 220-240v, 50hz; three-phase 380-415V 50hz; single-phase 120v / 240v ,240v 60hz and three-phase 480v.

• High-yield

  All in one. Flexible and economical system solution

  Low maintenance cost

  Intelligent grid management

• Reactive power adjustable

• Self power reducer when over frequency

• Remote active/reactive power limit control

• High powered density

• Rust-free aluminum covers

• Flexible monitorings solution

• Small size,Light weight

• DC switch

• 4 inch screen，English display

• Optimum selection for big PV plants, commercial buildings…

• Max 98.3% efficiency

• Real time precise MPPT algorithm for max harvest

• Wide input voltage operation range from 160V to 960V

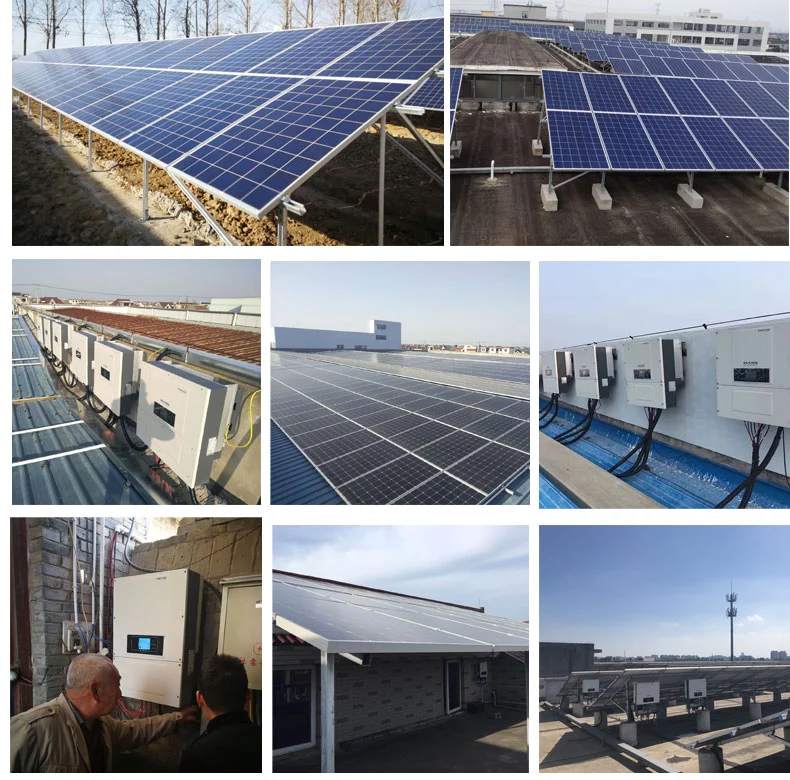

Our Company Projects for Reference
