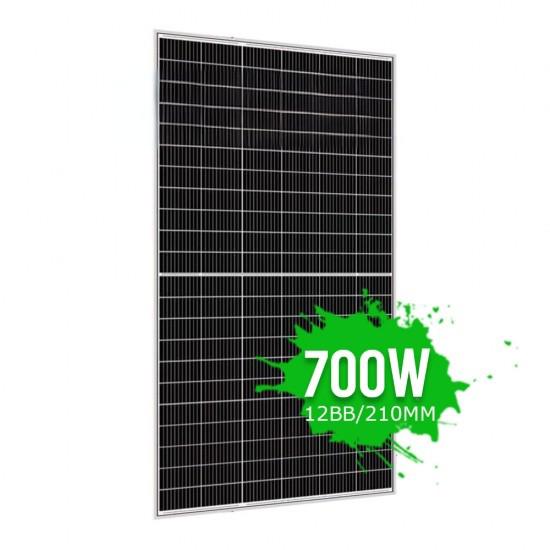

12BB Half Cut Cells Monocrystalline Solar Panels 680W 690W 695W 700W Solar Module

Specification of 210*210mm Half Cut Solar Panel Monocrystalline

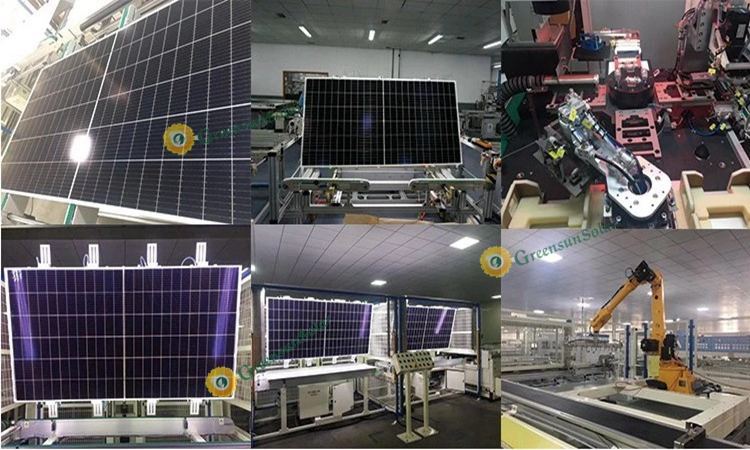

Production of 700W Half Cut Half Cells Solar Panel (210*210mm)

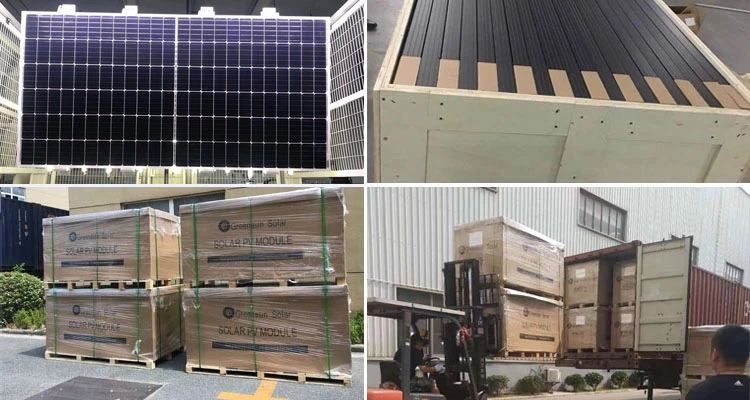

Package for Half-cut Solar Panel

31 units half-cut cells solar panel in one wood pallet

588 Units per 40`ft container

Customization Package is Feasibility

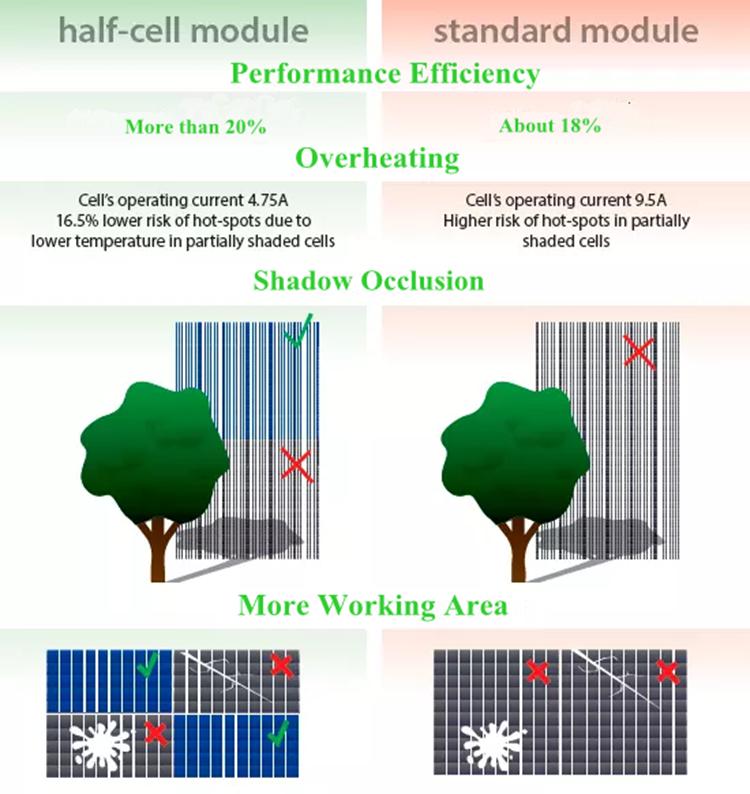

Half-cut Cells Advantages

(1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.

(2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.

(3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;

(4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

(5) Reduce the first year and the average photoinduced attenuation;

(6) 100% PID Free.

On grid solar system connects to grid, self consumption first,excess power can be sold to the grid.

Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.

Energy Storage Solar System can connect to grid, self consumption first, excess power can be stored in the battery

Hybrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.

Stand alone solar system works alone without city power

Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
