M12 HJT Solar Module Monocrystlline 500W 520W 550W Solar Panels 550Watt Half Cut Half Cells for Sale

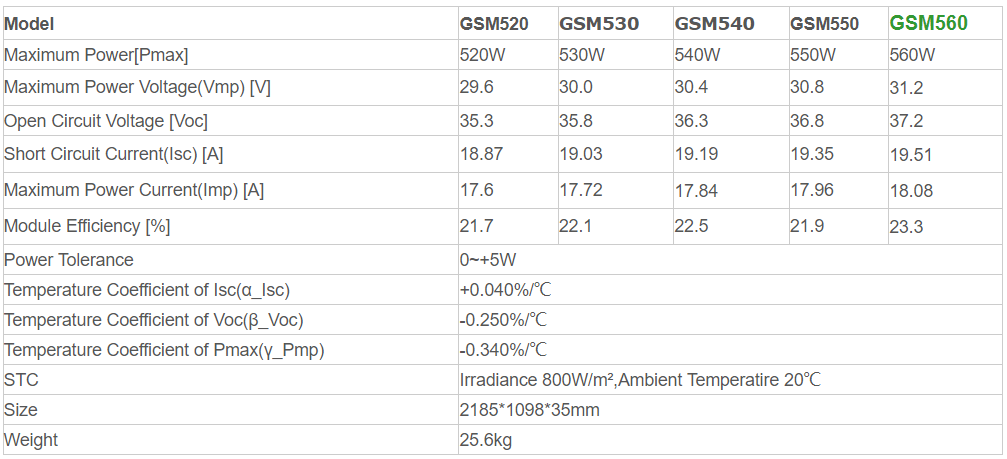

Specification of 210mm Half Cut Solar Panel Monocrystalline

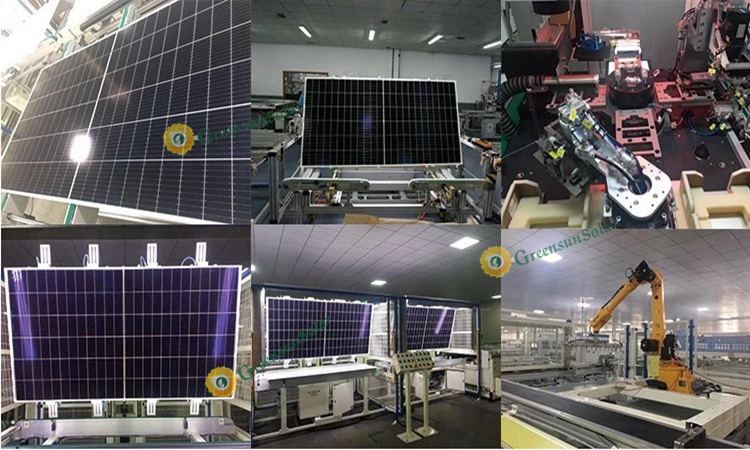

Production of 520W-560W Half Cut Half Cells Solar Panel (210mm)

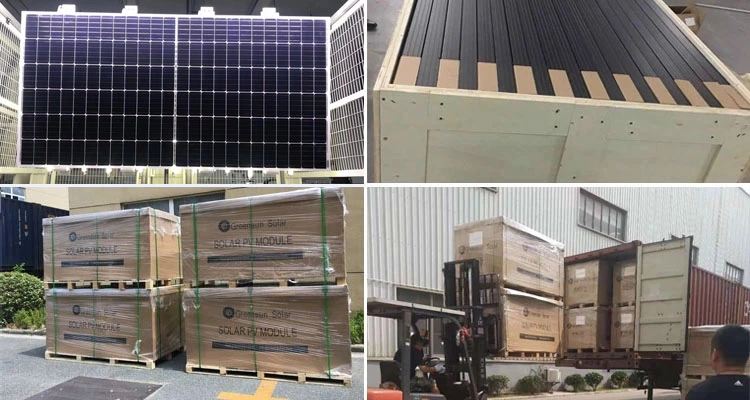

Package for Half-cut Solar Panel

27 units to 30units half-cut cells solar panel in one wood pallet

10 pallets solar panels in a 20ft container

23 pallets pv modules in a 40ft HQ container

Customization Package is Feasibility

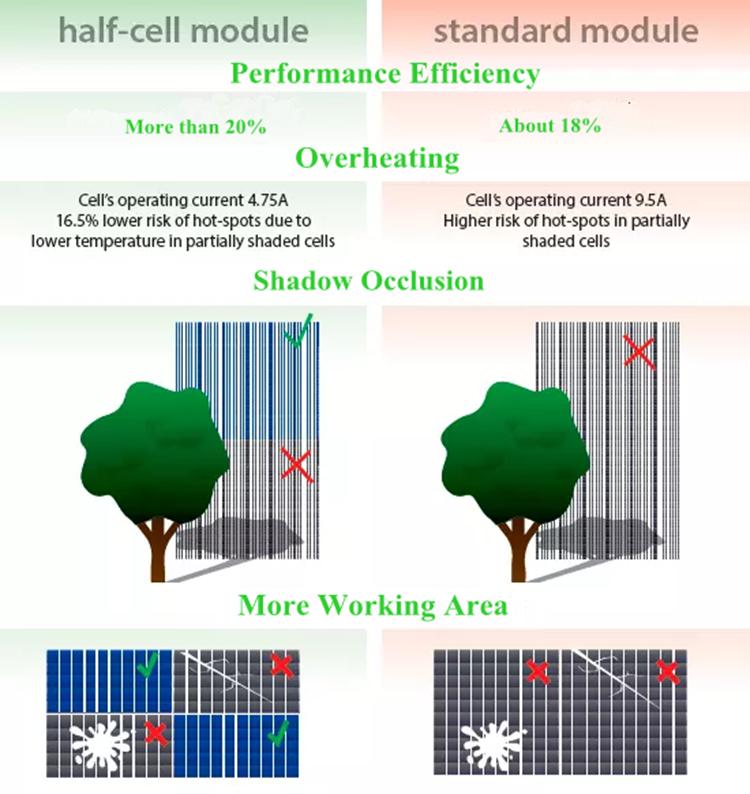

Half-cut Cells Advantages

(1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.

(2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.

(3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;

(4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

(5) Reduce the first year and the average photoinduced attenuation;

(6) 100% PID Free.

INMETRO Solar Panel 550Watt for Brazil Market
