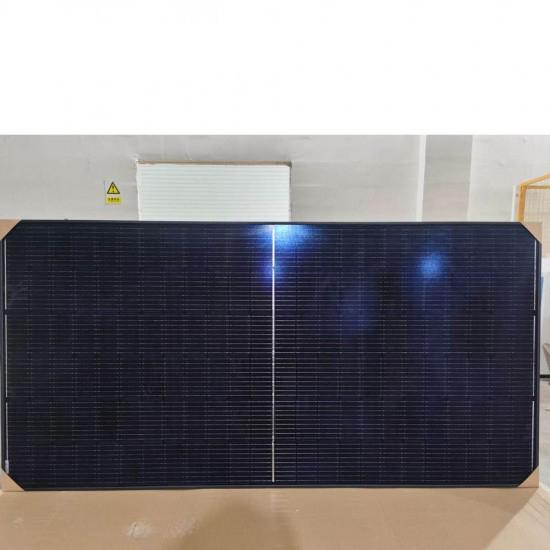

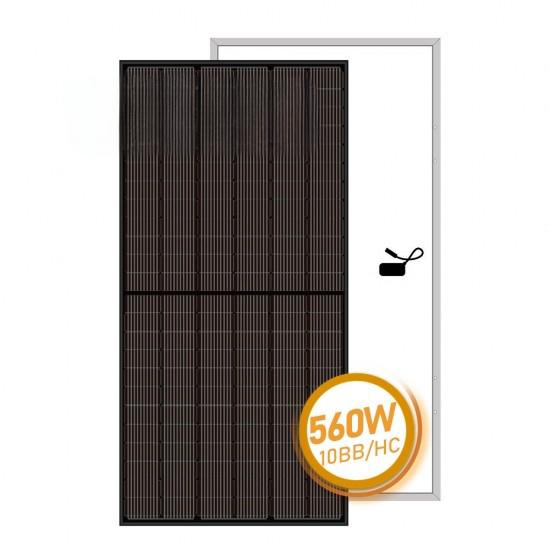

Home Solar Energy Panel 540W 550W 555W 560W Full Black Photovoltaic Solar Module Price

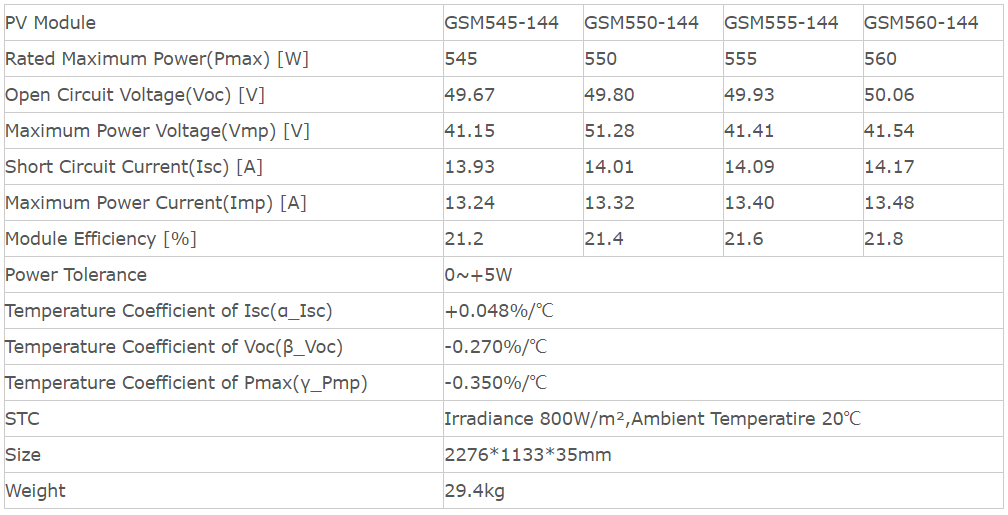

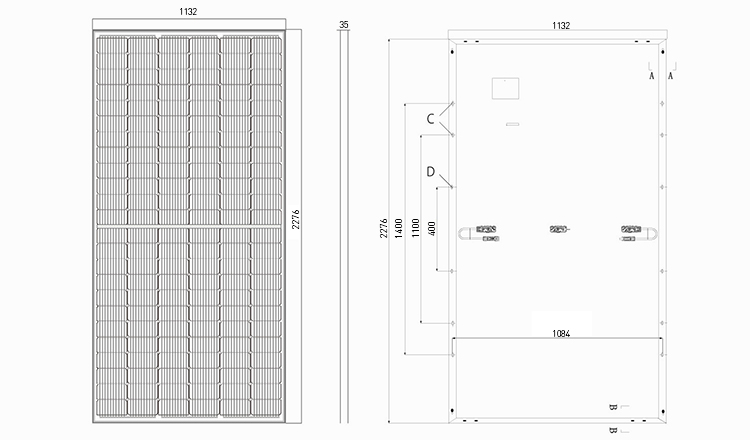

Specification of 182*182mm Half Cut Solar Panel 144cells Monocrystalline

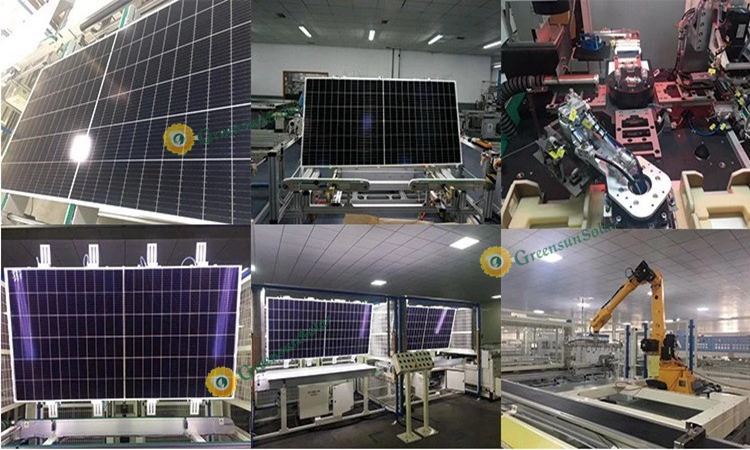

Production of Half Cut Half Cells Solar Panel (182*182mm)

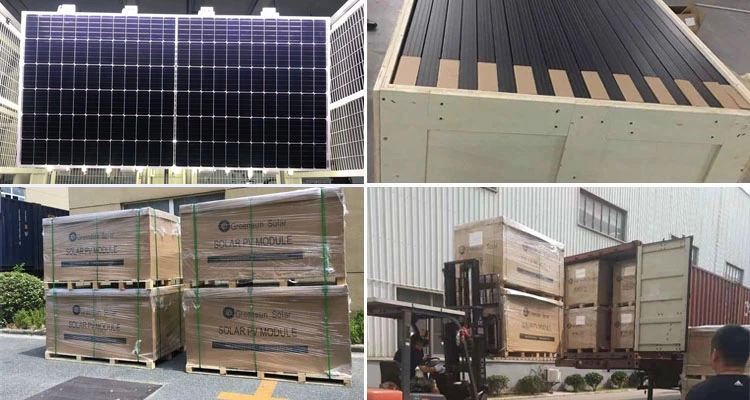

Package for Half-cut Solar Panel

31units half-cut cells solar panel in one wood pallet

10 pallets solar panels in a 20ft container

20 pallets pv modules in a 40ft HQ container

Customization Package is Feasibility

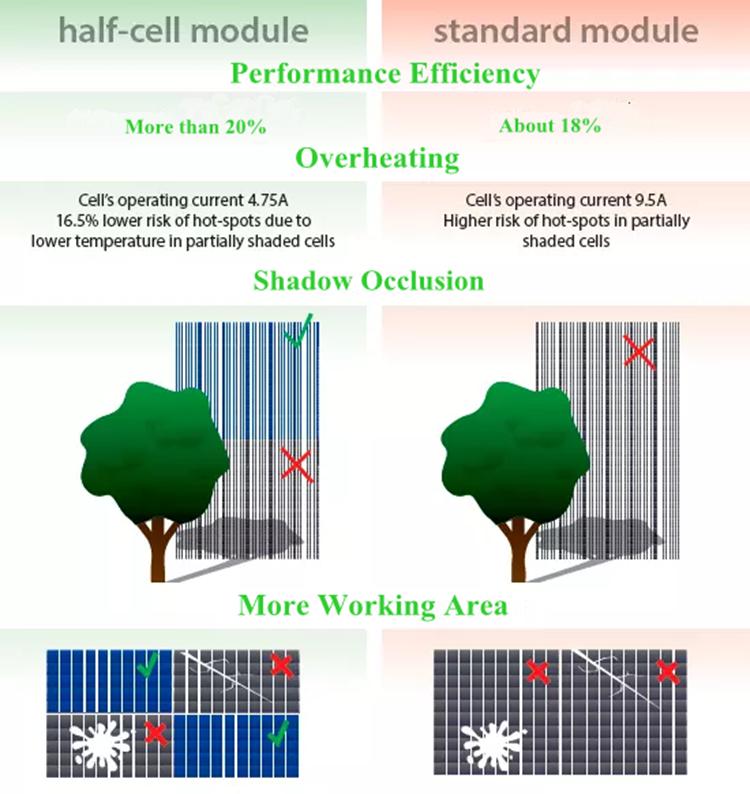

Half-cut Cells Advantages

(1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.

(2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.

(3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;

(4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

(5) Reduce the first year and the average photoinduced attenuation;

(6) 100% PID Free.

Own factory, many years of export experience, strict quality management system.
Compared with other suppliers, we can give more favorable prices and services on the premise of ensuring quality.
Our factories and products follow ISO9001, ISO4001, TUV, IEC, CE, UL, and other global standards to produce.
